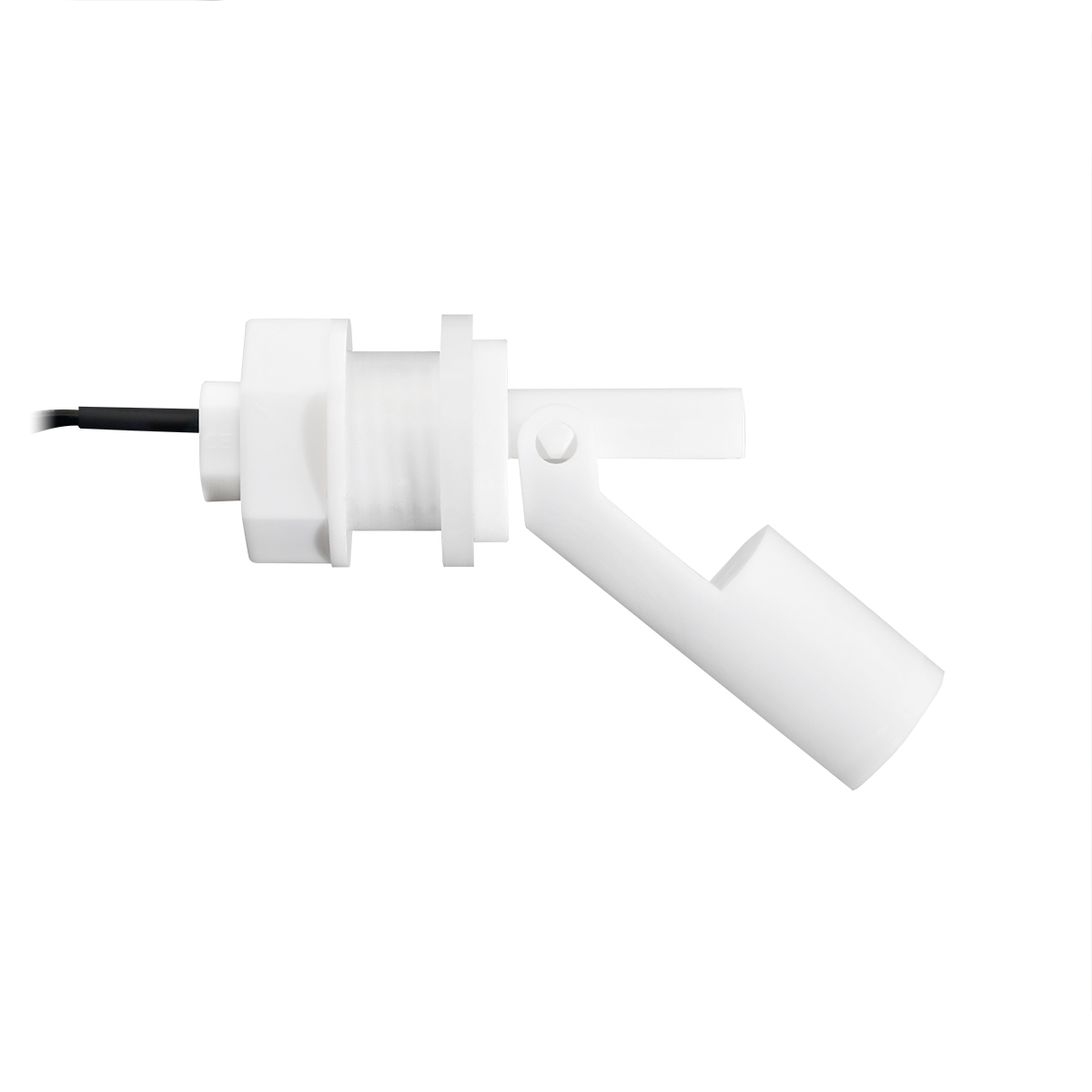

FAST-54LPP-2AY
FAST-54LPP-2AY-4N
Application: Water tanks, etc. are used to detect liquid level and consumption.
Installation method: horizontal only, G1/2 thread.
Test environment: lack of water or full of water
Detection depth: any depth
Switch material: PP stem and PP foam sealing ball
- Description
- Specifications
- Size
FAST-54LPP-2AY
Application: Water tanks, etc. are used to detect liquid level and consumption.
Installation method: horizontal only, G1/2 thread.
Test environment: lack of water or full of water
Detection depth: any depth
Switch material: PP stem and PP sealing ball
Origin:China
|
Application |
Water tanks, etc. are used to detect liquid level and consumption. |
|
Manufacture |
SHENZHEN FAST SENSOR CO.,LTD. |
|
Installation method |
horizontal only |
|
Detection depth |
□ L=54mm |
|
Parameter |
□ PP stem and PP sealing ball |
|
Electronic Parameter |
□ 1=10W,100V,0.5A Black wire □ 2=10W,100V,0.5A blue&green |
|
Contact Foram |
A=Normal Opening |
|
Detect water level point |
□ Y=water full alarm, adjustable direction |
|
Shell Color |
□ □W=White □ B=Black（Standard） |
|
Thread |
□ M12（Standard） □ M16 □ 4SS=G1/2 □ 6N=G3/4 |
|
Wire Material |
□ □ W=Teflon#24 blue (standard) □ C3.8=φ3.8 double insulated cable black □ C4.5=φ4.5 double insulated cable black |
|
Wire Length(mm） |
□ 300（Standard） □ 500 □ 1000 □ others |
|
Terminals and terminal housings |
□ 2Y=Domenstic □ SM=Korea □ JST=JP □ Others |
|
Output Signal |
ON/OFF，2 Wires |
|
Working Temperature℃ |
-40~+100 |
|
Order Information |
Eg, FAST-54LPP-2AY-M12-300WW-2Y |
|
Brand - 54mm long, PP rod and float ball - 70W, normally open, full of water, adjustable - M12 - 300mm wire length, white shell, #22 wire - domestic terminal |
