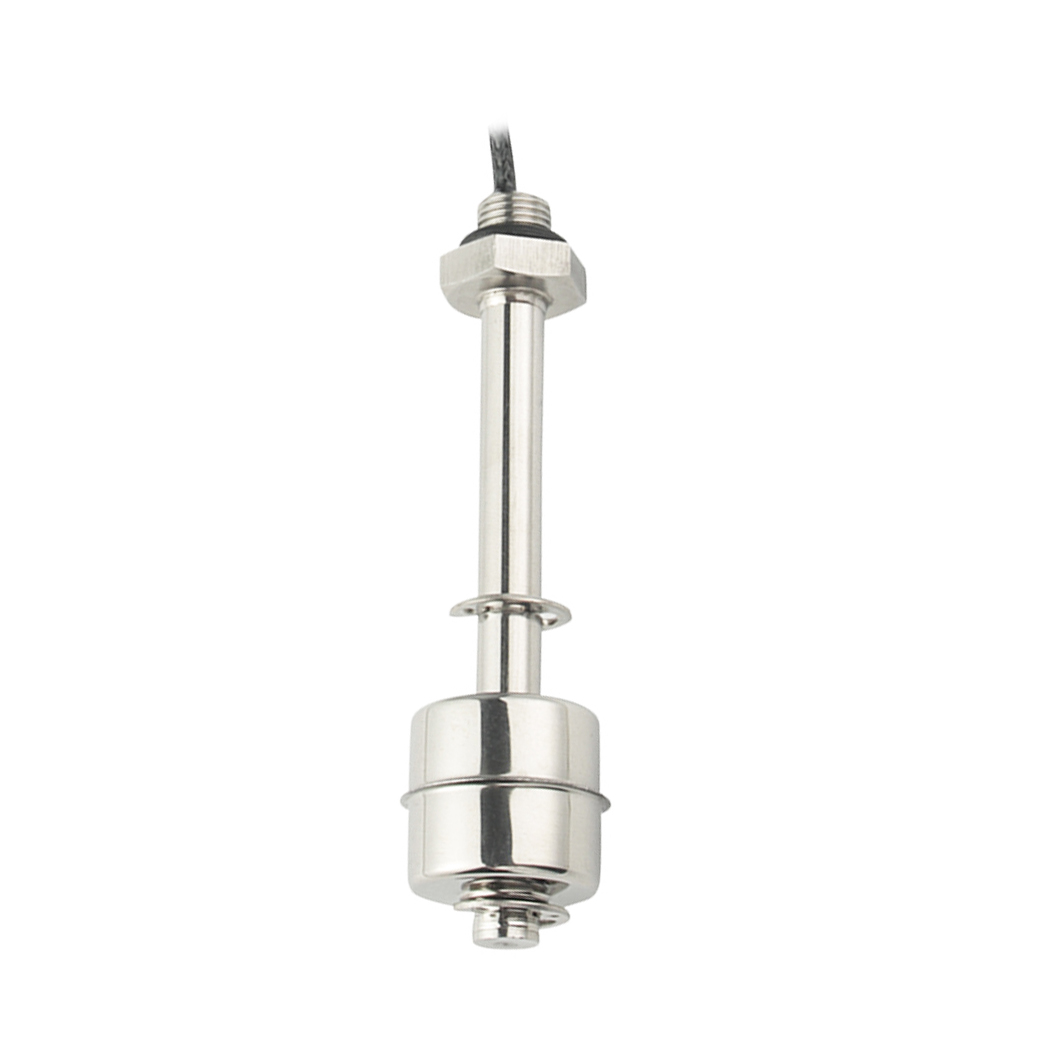

FAST-70-180LSS
FAST-70-180LSS
Test environment: lack of water or full of water
Detection depth: 70-180 mm
Switch material: SUS304 rod and 2×SUS304 balls
- Description
- Specifications
- Size
FAST-70-180LSS
Application: Water tanks, etc. are used to detect liquid level and consumption.
Installation method: horizontal only, M10 thread.
Test environment: lack of water or full of water
Detection depth: 70~180 mm
Switch material: SUS304 rod and 2×SUS304 balls
Country of Origin: China
|
Application |
Water tanks, etc. are used to detect liquid level and consumption. |
|
Manufacture |
SHENZHEN FAST SENSOR CO.,LTD. |
|
Installation method |
horizontal only |
|
Detection depth |
□ L=70mm-180mm |
|
Parameter |
□ SS=SUS304stem and 2×SUS304float ball □ P= PP stem and 2×P foam ball □ PP= PPstem and 2×PP sealing ball |
|
Electronic Parameter |
□ 1=10W,100V,0.5A Black wire □ 2=10W,100V,0.5A blue&green |
|
Contact Foram |
A=Normal Opening |
|
Detect water level point |
□1=D1 water shortage alarm □ 2=D2 water full alarm |
|
Induction form |
□ V=Ball adjustable surface □ No V=Ball non-adjustable surface |
|
Thread |
only M12 |
|
Wire Material |
□ W=UL1007#22 Black/Blue（Standard） □ C3.8=φ3.8Double insulated cable black □ C4.5=φ4.5Double insulated cable black |
|
Wire Length(mm） |
□ 300（Standard） □ 500 □ 1000 □ others |
|
Terminals and terminal housings |
□ 2Y=Domenstic □ SM=Korea □ JST=JP □ Others |
|
Output Signal |
ON/OFF，2 Wires |
|
Working Temperature℃ |
-40~+85 |
|
Order Information |
Eg, FAST-190LSS-2A1+2A2-M12-300W-2Y |
|
Brand - 190 mm deep, SUS304 stem and float - 70W, normally open, lower float lacks water, upper float is full of water, ball non-adjustable surface - M12 - 300 mm wire length, #22 wire - domestic terminal |
