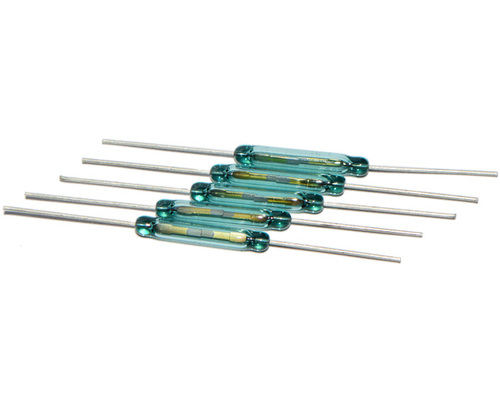

HYR-1508
Contact form :Form C
Dimension(mm) :∅2.2*14.2/48.3mm
Electrical parameters: 10W/0.5A/220VDC
ensitive range:15-50AT
- Description
- Specifications
- Size
- Compact structure and light weight - reed switches have a small installation space and are suitable for various micro devices. They are the ideal accessories preferred by many manufacturers.
- Hermetic sealing - the switching element of the reed switch is sealed in an inert gas and is not affected by the external environment.
- Long service life - Aleph reed switches do not use sliding elements, and will not cause metal fatigue due to the degradation of the metal used, ensuring virtually unlimited mechanical service life.
- High-speed operation - each moving element has a small mass and a fast action speed. Aleph reed switches are widely used in transistors and integrated circuits
Parameter：
| Model | HYR1508 |
| Maximum length of glass body(mm) | 14.2Max |
| Maximum diameter of glass body(mm) | ∅2.2Max |
| Pin diameter(mm) | ∅0.51 |
| Contact Form※1 | C |
| Maximum rated power | 10W |
| Maximum operating voltage | DC 200V |
| Maximum operating Current | 0.5A |
| AT Range※2 | 15-50AT |
