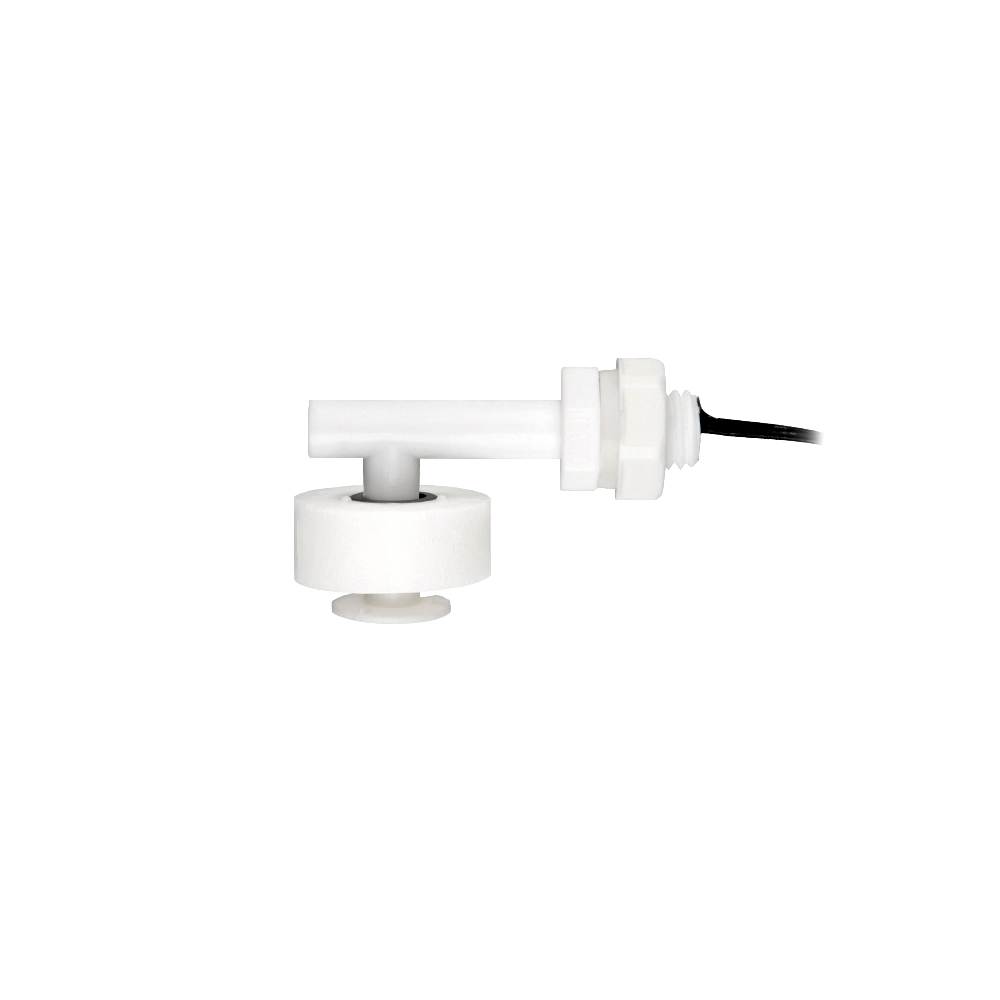

FAST-32LP
Installation method: horizontal only, M10 thread.
Test environment: lack of water or full of water
Detection depth: 32/41mm
Switch material: PP Stem and PP foam ball
- Description
- Specifications
- Size
FAST-32LP
Application: Water tanks, etc. are used to detect liquid level and consumption.
Installation method: horizontal only, M10 thread.
Test environment: lack of water or full of water
Detection depth: 32/41mm
Switch material: PP Stem and PP foam ball
Origin: China
|
Application |
Water tanks, etc. are used to detect liquid level and consumption. |
|
Manufacture |
SHENZHEN FAST SENSOR CO.,LTD. |
|
Installation method |
horizontal only |
|
Detection depth |
□ L=32/41mm |
|
Parameter |
□ P= PP stem and PP foam ball □ PP=PP stem and PP sealing balls |
|
Induction form |
□ V=Ball adjustable surface □ No V=Ball non-adjustable surface |
|
Electronic Parameter |
□ 1=10W,100V,0.5A Black wire □ 2=10W,100V,0.5A blue&green |
|
Contact Form |
A=Normal Opening |
|
Detect water level point |
□ 2=D2 water full alarm |
| Induction form | □ V=Stem adjustable surface |
|
Thread |
M10 |
|
Wire Material |
□ W=UL1007#24 Black/Blue（Standard） □ C3.8=φ3.8Double insulated cable black □ C4.5=φ4.5Double insulated cable black |
|
Wire Length(mm） |
□ 300（Standard） □ 500 □ 1000 □ others |
|
Terminals and terminal housings |
□ 2Y=Domenstic □ SM=Korea □ JST=JP □ Others |
|
Output Signal |
ON/OFF，2 Wires |
|
Working Temperature℃ |
-40~+100 |
|
Order Information |
Eg, FAST-32LP-1AV-M10-300W-2Y |
|
Brand -32mm long, PP stem and float-10W, normally open, lack of water alarm, ball non-adjustable surface-M8I F -300mm wire length, #22 wire-domestic terminal |
