ZP-1/2/3
Contact form: Form A;Normally open-single pole single throw
Size: ø5.5*50.8/83.5mm
Electrical parameters: 50W/5kV/2A
Breakdown Voltage:7K/10K/14K VAC
- Description
- Specifications
- Size
ZP-1/2/3
Contact form: Normally open-single pole single throw
Size: 5.5*50.8mm
Electrical parameters: 50W/5kV/2A

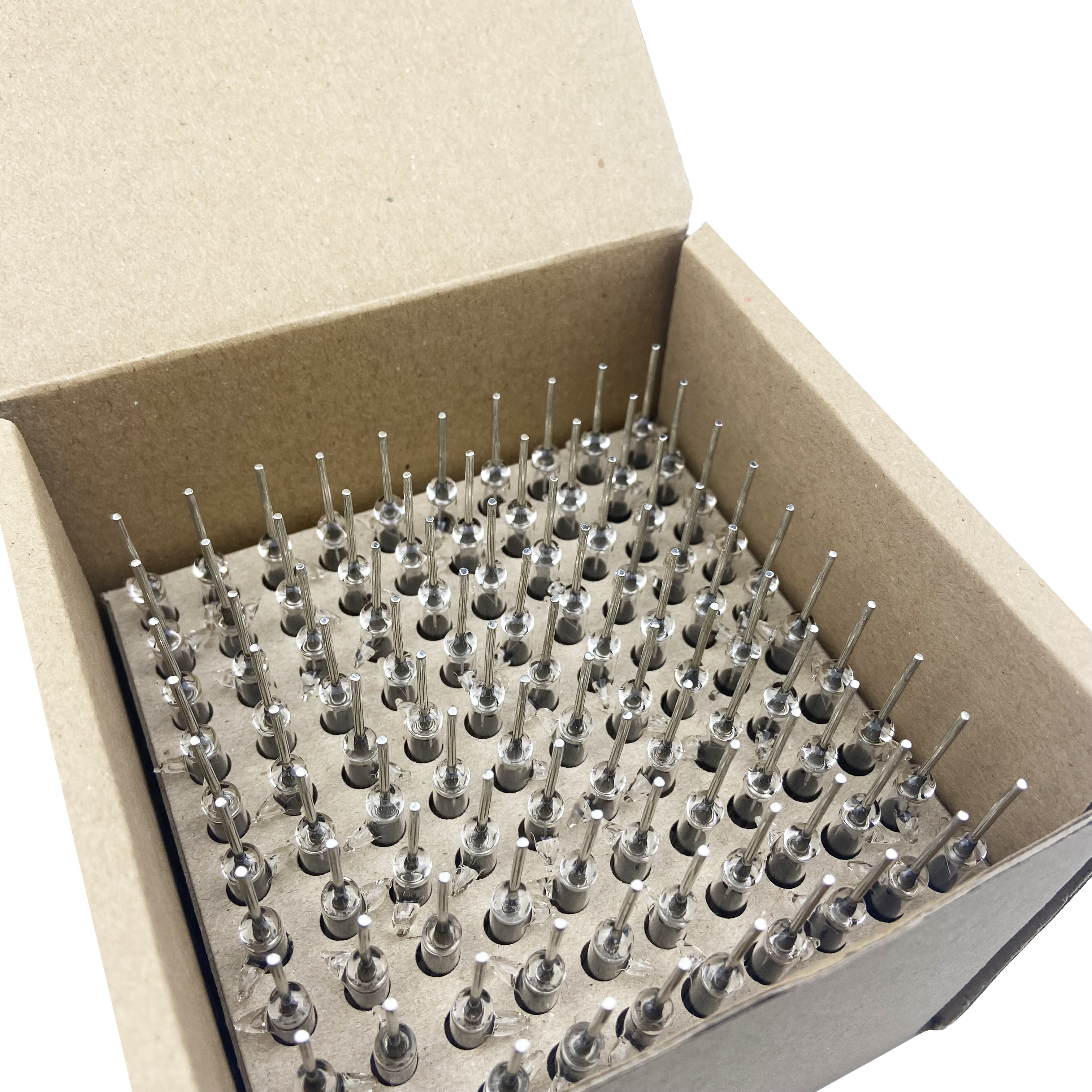

Minimum order quantity: 100 pieces/box
Country of Origin: Poland
Application |
Security, limit switches, high voltage equipment | |||||
Original |
PITRADWAR |
|||||
Model No. |
- |
ZP-1 |
ZP-2 |
ZP-3 |
||
Contact form |
- |
A-Normally open |
A-Normally open |
A-Normally open |
|
|
Contact material |
- |
Ru |
Ru |
Ru |
||
Switch Power |
Max. W/VA |
50 |
50 |
50 |
||
Switch Voltage |
Max. V |
5K |
7.5K |
10K |
||
Switch Current |
Max. A |
2 |
2 |
2 |
||
Peak Current |
Max. A |
3 |
3 |
3 |
||
Breakdown Voltage |
Min. VAC/DC |
7K |
10K |
14K |
||
Contact Resistance |
Max. Ohms |
0.1 |
0.1 |
0.1 |
||
Insulation resistance |
Min. Ohms |
1012 |
1012 |
1012 |
||
At Range |
AT |
100-170 |
100-180 |
120-200 |
||
Action, bounce time |
Max. ms (total) |
3.6 |
3.6 |
3.6 |
||
Release and bounce time |
Max. ms (total) |
0.5 |
0.5 |
0.5 |
||
capacitance |
Typ. pF |
0.5 |
0.5 |
0.5 |
||
Environmental category IEC 68-1 |
55/125/10 |
55/125/10 |
55/125/10 |
|||
Lifetime 10kVDC,1mA |
operations |
|||||
0.5x106 |
0.5x106 |
0.5x106 |
